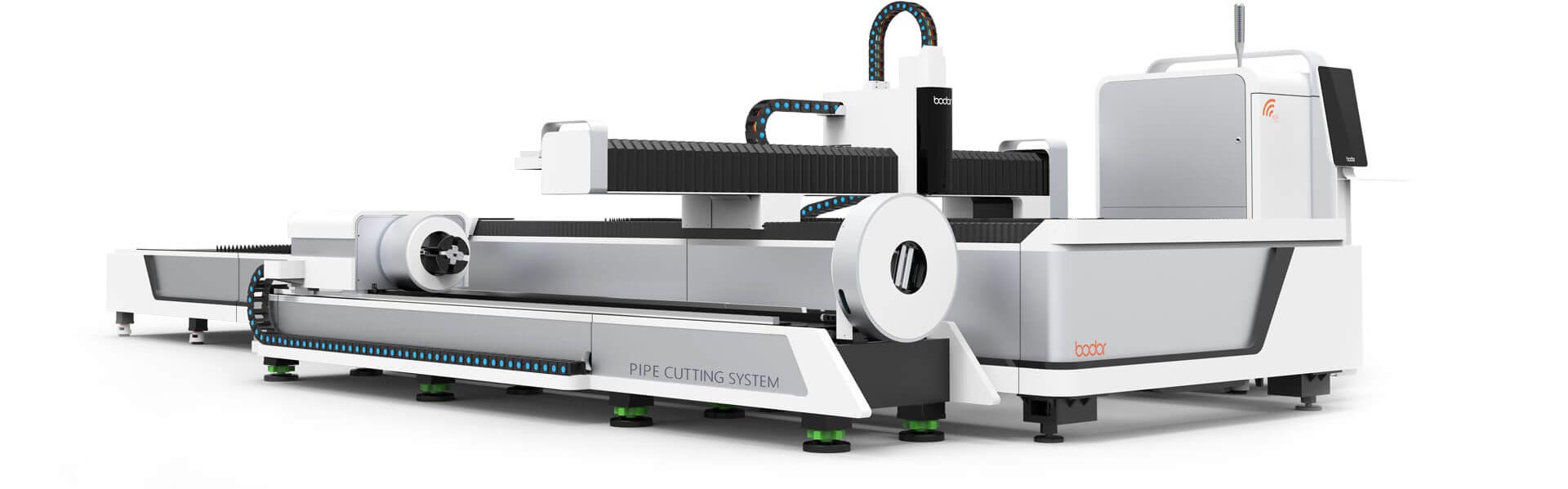

Exchange Platform Dual-use Laser Cutting Machine E-T
Exchange Platform Dual-use Laser Cutting Machine E-T

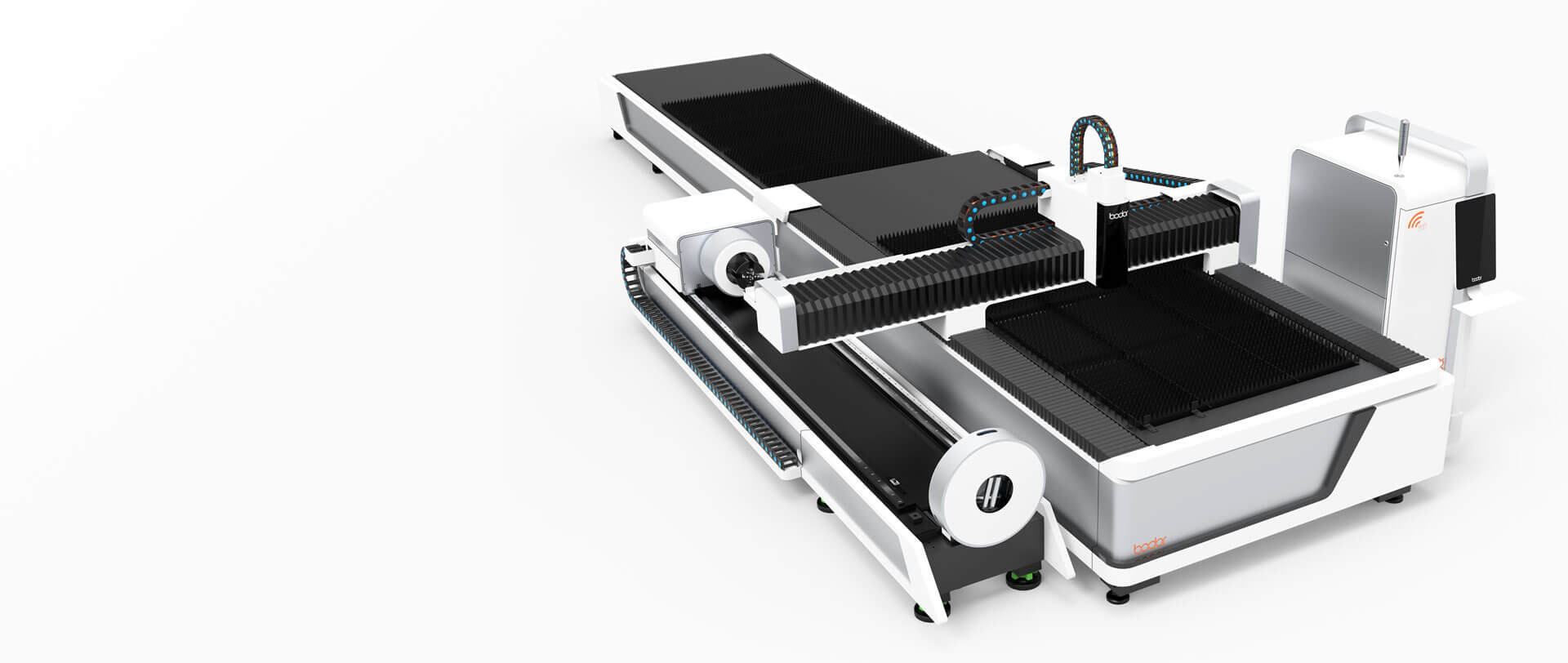

One machine for dual uses
Fiber cutting machine E-T model adds tube cutting function, meeting requirements for both plate metal and tube cutting. One machine for multiple uses.

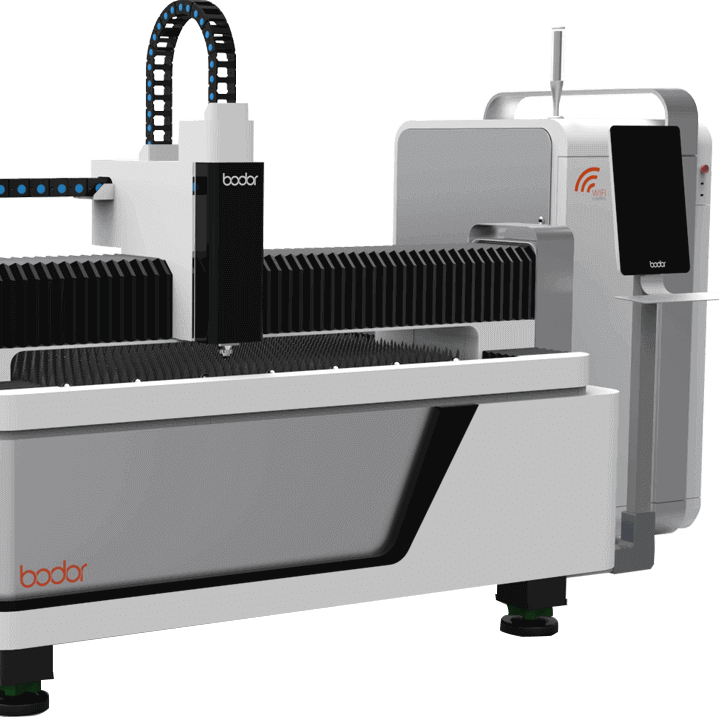

Cutting control system
Fiber laser cutting machine E-T model applies Bodor’s newly developed control system BodorPro which is more stable than traditional cutting system.
Application of novel technology
Application of chuck, independently designed and developed by Bodor, is another example of novel technology that remarkably improves cutting precision and working efficiency.
Uniqueness
The sole manufacturer in China that applies gears for working platforms exchange, to ensure exchange speed and cutting precision.
Technical Parameters
| Model | E1530T | Option |
|---|---|---|
| Working Area | 1500*3000 mm | According to demands |
| Laser Output Power | 1000W / 1500W / 2000W / 3000W / 4000W | |
| Effective Pipe Cutting Diameter | Φ20-Φ200mm | |
| Effective Pipe Cutting Length | 3m/6m | |
| X/Y/U-axis positioning accuracy | 0.03mm | |
| X/Y/U-axis repositioning accuracy | 0.02mm | |
| X/Y-axis max.moving speed | 100m/min | |
| U-axis max.moving speed | 30m/min | |
Application
Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc.

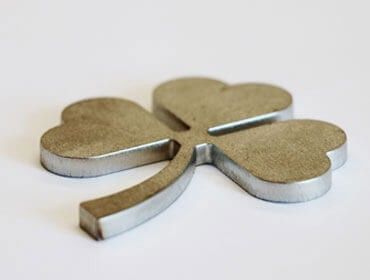

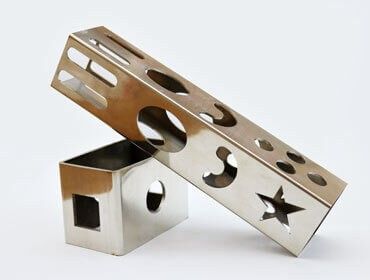

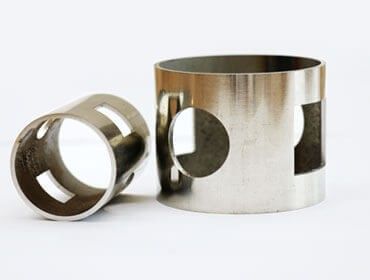

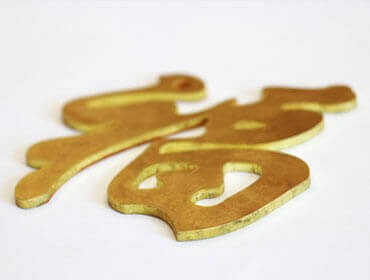

Application Materials
Suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials.
