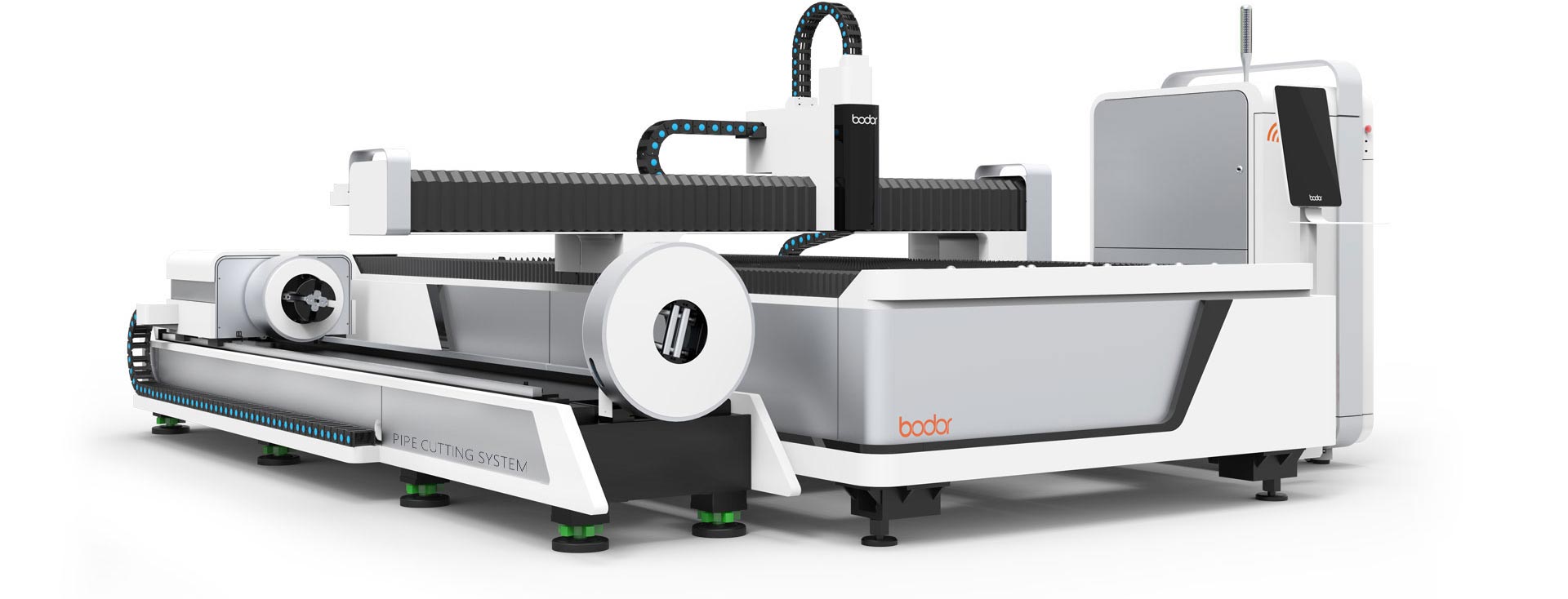

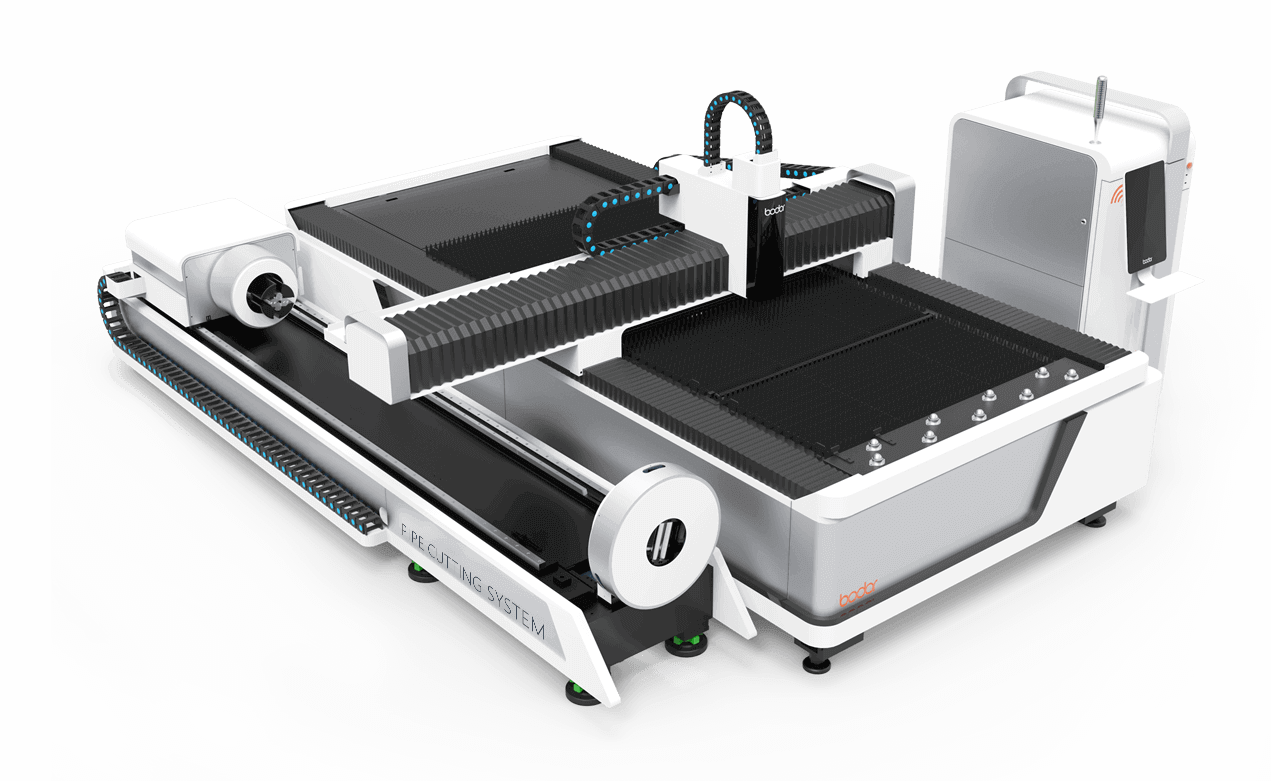

Duální laserový řezací stroj F-T
Kombinovaný nekrytovaný vláknový řezací laser umožňující jak řezání tabulového materiálu tak trubek.

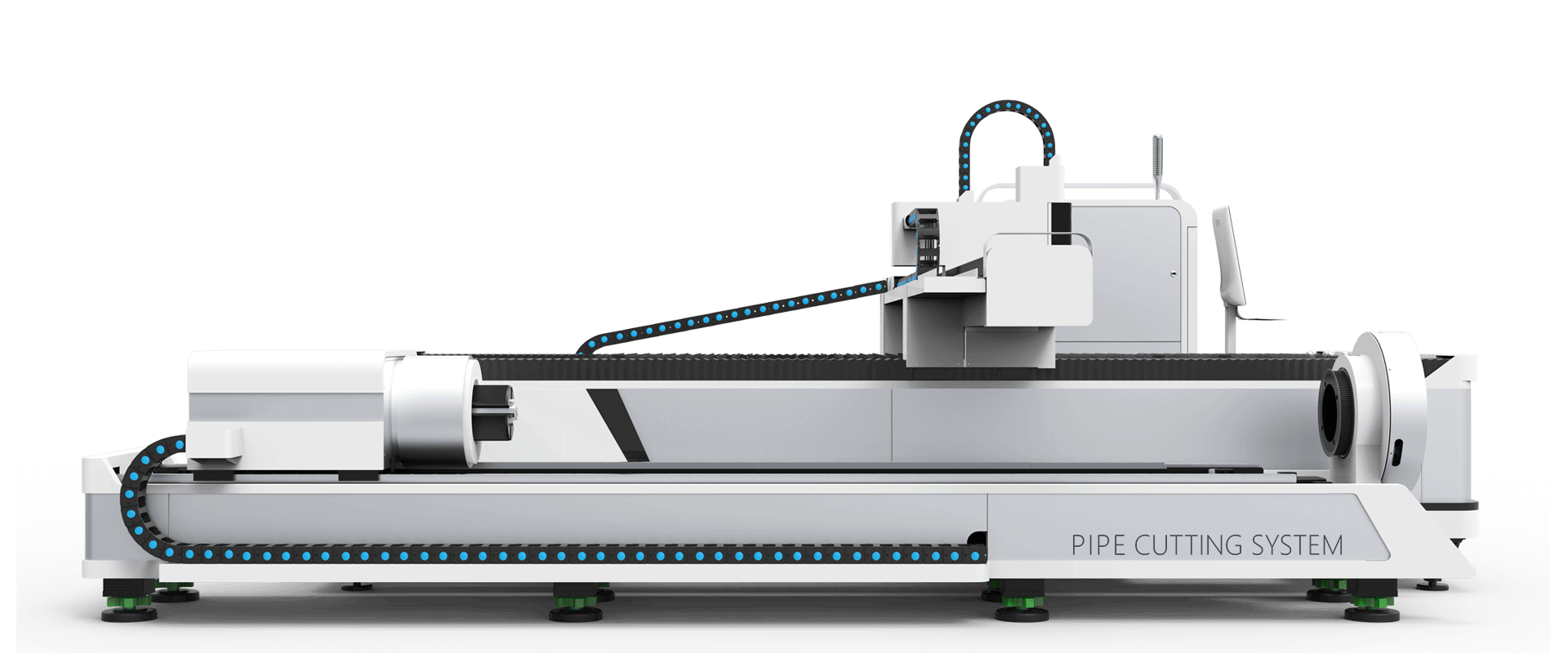

One machine for dual uses
Fiber laser cutting machine F-T model adds tube cutting function, meeting requirements for both plate metal and tube cutting. One machine for multiple uses.
Your concern, Bodor’s focus
Application of manual clamping chuck with extra-long mechanic claw to reduce material waste. Processing diameter falls between 20mm–200mm, which could meet most of the tube cutting requirements. Synchronized electric servo motor-driven chucks at both front and rear ends.
Novel technology application
Application of chuck, independently designed and developed by Bodor, is another example of novel technology that remarkably improves cutting precision and working efficiency.

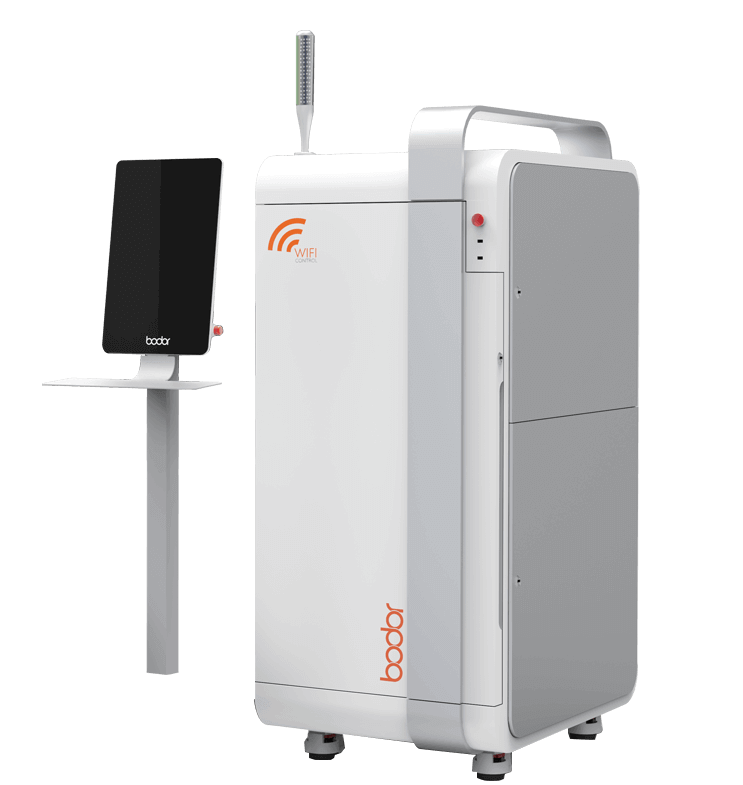

Independent structures for integrated performance
Bodor breaks conventional design rule by separating the display screen and control cabinet. The unique design saves space for users and makes the machine placement more flexible.
Technical Parameters
| Model | F1530T | Option |
|---|---|---|
| Working Area | 1500*3000 mm | According to demands |
| Laser Output Power | 1000W / 1500W / 2000W / 3000W / 4000W | |
| Effective Pipe Cutting Diameter | Φ20-Φ200mm | |
| Effective Pipe Cutting Length | 3m/6m | |
| X/Y/U-axis positioning accuracy | 0.03mm | |
| X/Y/U-axis repositioning accuracy | 0.02mm | |
| X/Y-axis max.moving speed | 100m/min | |
| U-axis max.moving speed | 30m/min | |

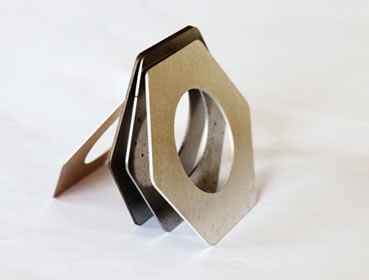

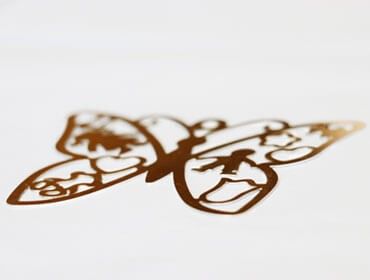

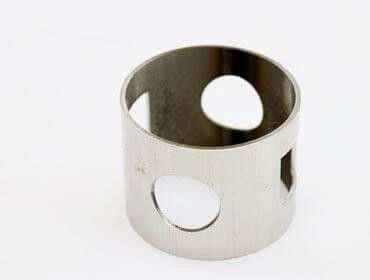

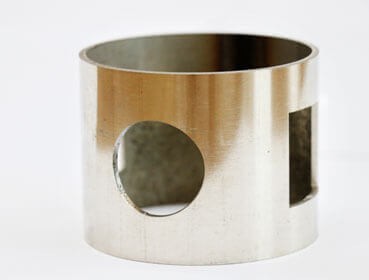

Application
Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc.
Application Materials
Suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials.
